Drafting (again)

When a pattern you draft does not give the result you want, you may get discouraged and think “why draft, I’ll use and change commercial patterns”. That’s what happens to me, until I realize that I have lots of fitting problems then too or when a garment comes along that I want to copy urgently. That’s what happened when I saw this thread on PatternReview discussing this top (which costs $ 400! I’ll never spend that much on a top):


Quite simple looking, yet elegant. Very much a summer top, but also wearable under a jacket. Couldn’t help myself and tried to draft it. This is my muslin, based on my sloper drafted in Suzy Furrer’s Craftsy class.

IMG_4672IMG_4673

In her class on neckline variations Suzy Furrer shows how to draft a funnel neckline and an opera neckline but both in variations that stand away from the neck. I could use the information to draft this neckline hugging version.

My observations:

  • funnel neckline close to the neck
  • curved v-neck
  • 1 to 2 inched seam below lowest point of v-neckline, opening into a small pleat
  • seam in the back neckline
  • center back seam
  • no darts

For my version I chose to have a bust dart: removing all darts in the waist dart is too much on my figure and I think that being full busted that is just fitting better. I did not use a seam in the back neckline.

Hope the next drawings are clear in how I got to this pattern. I use inches in this description as I’m quite used to doing those now, having followed so many of Suzy Furrer’s classes. I use an inch ruler too when I do these markings.

The starting point: sloper draft of the front, shoulder and armhole dart closed and the space “dumped” into the bust dart. (alternative could be a blouse/shirt pattern with not too much ease).

IMG_4703

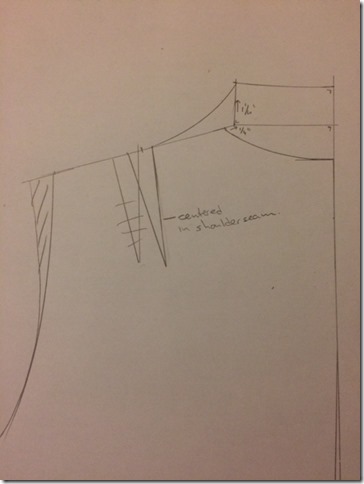

I went 1/4 inch in for the shoulder seam
(for those having done this sloper too: this is the 1/4 inch you remove from the moulage to get extra space around the neckline. I started using this point but it was too wide, so I went back to the original moulage point)

IMG_4704

From that shoulder point 1 1/4 inch up, perpendicular to the center front

Draw the curve, ending around the middle of the shoulder seam.

Decide where you want the v-neckline to end and draw a curved line to that point.

IMG_4705

IMG_4706

I decided to have the center seam 1/2 inch below the bust line. If the pleat would start too high, it would open up which at bust level, not so nice probably. The pleat is 1 inch deep (you could make it less or more, it’s just what I thought would be about right), so the amount of fabric for the pleat is 2 inches. The front can be cut on the fold. As I’m used to I marked the darts as “not using them”.

IMG_4708

As last step I removed 3/4 inch from the shoulder width.

IMG_4709

The back: starting point the sloper again.

IMG_4710

Basically this is the same change: 1/4 inch into the neckline, 1 1/4 inch up, draft the curve and the neckline.

Remove 3/4 inch from the shoulder width and center the back dart again (I prefer to keep this dart too for better fit).

IMG_4711

The final pattern pieces. The orange dotted line is the line for facings. For the back I will remove the dart from the facing by folding it away. Or I could change my mind and make separate facings for neckline and armhole. First to decide which fabric to use for the top.

IMG_4713

NB: I folded out a little bit (about 1/2 inch) from the curved neckline to make sure the neckline doesn’t gape. This is more necessary for fuller busted women if I remember it right.

IMG_4714

Hope this helps some of you interested in drafting in general or this top specifically. It’s my interpretation of doing this. If you do this I do advice to make a muslin as I’m not a teacher and can’t guarantee this works for you too.
